VS Factory Rolex Submariner No Date 124060 41mm QC Inspection Report

VS Factory Rolex Submariner No Date 124060 41mm QC Inspection Report

Product Information

* Factory: VS Factory
* Brand: Rolex
* Collection: Submariner No Date
* Reference: 124060
* Case Size: 41 mm Class
* Case / Bracelet: Full 904L Steel
* Dial: Black Dial
* Movement: 3230 Automatic Movement

Technical Specifications

* Measured Case Width: 40.2 mm
* Measured Case Thickness: 12.5 mm
* Measured Weight: 158.7 g*
* Movement: 3230 Automatic Movement
* Beat Rate: 28,800 BPH
* Material: 904L Steel

*The 158.7 g figure is the actual measured weight of this individual QC sample. Bracelet sizing, production tolerances and individual assembly may result in small differences between watches.

Timegrapher Test Results

Test Item Measured Result
Daily Rate -4 sec/day
Amplitude 301°
Beat Error 0.3 ms
Beat Rate 28,800 BPH

QC Data Reference

These readings were recorded directly from this individual VS Factory Rolex Submariner 124060 during its pre-shipment QC inspection.

Mechanical movement readings can vary according to mainspring power, testing position, temperature and other testing conditions. The recorded -4 seconds/day therefore represents the performance observed from this individual watch during testing rather than a permanently fixed daily rate.

For our QC reference, a daily deviation within approximately ±0–15 seconds/day is considered within the normal operating range used for this type of pre-shipment movement inspection.

3230 Automatic Movement Test

This VS Factory Submariner 124060 uses a 3230 automatic movement operating at 28,800 vibrations per hour.

Actual QC readings:

* Daily Rate: -4 Seconds/Day
* Amplitude: 301°
* Beat Error: 0.3 ms
* Beat Rate: 28,800 BPH

The recorded data showed stable operation under the testing conditions.

As a No Date model, the movement does not require a date display or date-change mechanism. QC can therefore focus on the core movement functions, including automatic winding, manual winding, crown operation and time setting.

No Date Configuration

One of the defining characteristics of the 124060 is its clean No Date dial configuration.

Unlike the Submariner Date models, there is no date window or Cyclops magnifier. This results in a more symmetrical dial layout and also changes the relevant QC inspection points.

For this model, attention should be placed on:

* Dial centering
* Hour-marker alignment
* Hand alignment
* Printing consistency
* Luminous application
* Crown operation
* Bezel alignment
* Crystal installation

The absence of a date display also means there is no Cyclops or date-window alignment to evaluate.

Actual Case Measurements

Measurements taken directly from this individual watch:

Measurement QC Result
Case Width 40.2 mm
Case Thickness 12.5 mm
Weight 158.7 g

Although the 124060 belongs to the nominal 41 mm Submariner generation, this individual watch measured 40.2 mm at the specific case measurement points used during QC.

This distinction is useful when comparing nominal model sizing with actual caliper measurements.

The 12.5 mm measured thickness and 158.7 g measured weight provide additional physical reference data for this individual watch.

904L Steel Case and Bracelet

This version uses a full 904L steel case and bracelet configuration.

The full-steel construction contributes significantly to the measured 158.7 g weight and overall wrist feel.

QC inspection should include:

* Case brushing
* Polished case surfaces
* Surface transitions
* Crown guards
* Crown operation
* End-link fit
* Bracelet-link articulation
* Bracelet alignment
* Clasp operation
* Clasp locking security

Weight alone should not be used as an indicator of quality. Case dimensions, bracelet sizing, weight distribution and overall assembly should be considered together.

Black Dial Inspection

The black No Date dial has a clean and symmetrical layout, making alignment particularly easy to inspect.

Important QC areas include:

* Dial surface condition
* Hour-marker positioning
* Printing consistency
* Hand alignment
* Luminous application
* Dial cleanliness
* Overall symmetry

Because there is no date window, the visual relationship between the hour markers and hands becomes an even more prominent part of the dial presentation.

Bezel Inspection

The rotating bezel is one of the main functional components of the Submariner.

Pre-shipment inspection should cover:

* Bezel rotation
* Click consistency
* 12 o’clock marker alignment
* Insert positioning
* Numeral and scale condition
* Excessive lateral play
* Surface condition

The bezel should rotate consistently and return to the reference position with correct visual alignment.

QC Data Observations

This individual VS Factory Rolex Submariner No Date 124060 recorded:

* -4 seconds/day
* 301° amplitude
* 0.3 ms beat error
* 28,800 BPH
* 40.2 mm measured case width
* 12.5 mm measured thickness
* 158.7 g measured weight

The 3230 automatic movement produced stable readings under the recorded testing conditions.

Because this is the No Date configuration, QC is relatively straightforward compared with models containing additional complications. Particular attention should be given to the movement readings, bezel operation, dial symmetry, hand and marker alignment, case finishing, bracelet assembly and clasp operation.

These measurements document an actual individual watch and can provide useful reference data when comparing other VS production pieces or different factory versions of the 124060.

Pre-Shipment QC Inspection

* ✔️ 3230 automatic movement checked
* ✔️ Timegrapher test completed
* ✔️ -4 seconds/day recorded
* ✔️ 301° amplitude recorded
* ✔️ 0.3 ms beat error recorded
* ✔️ 28,800 BPH confirmed
* ✔️ Automatic winding checked
* ✔️ Manual winding checked
* ✔️ Crown operation checked
* ✔️ Time-setting function checked
* ✔️ Case width measured at 40.2 mm
* ✔️ Case thickness measured at 12.5 mm
* ✔️ Individual watch weight measured at 158.7 g
* ✔️ Black dial surface inspected
* ✔️ Hour-marker alignment checked
* ✔️ Hand alignment checked
* ✔️ Luminous application visually inspected
* ✔️ Bezel alignment checked
* ✔️ Bezel rotation tested
* ✔️ Case finishing inspected
* ✔️ End-link fit checked
* ✔️ Bracelet articulation inspected
* ✔️ Clasp locking function checked
* ✔️ Overall exterior assembly inspected
* ✔️ Final pre-shipment QC inspection completed

QC Status

Inspection Result: PASS

QC Status: Pre-Shipment Quality Inspection Completed

FAQ

What movement does the VS Factory Submariner 124060 use?
The inspected watch uses a 3230 automatic movement operating at 28,800 BPH.

What were the actual Timegrapher results?
This individual watch recorded -4 seconds/day, 301° amplitude and 0.3 ms beat error during the QC test.

Is the VS Factory 124060 a No Date version?
Yes. The 124060 uses the traditional No Date dial configuration, without a date window or Cyclops magnifier.

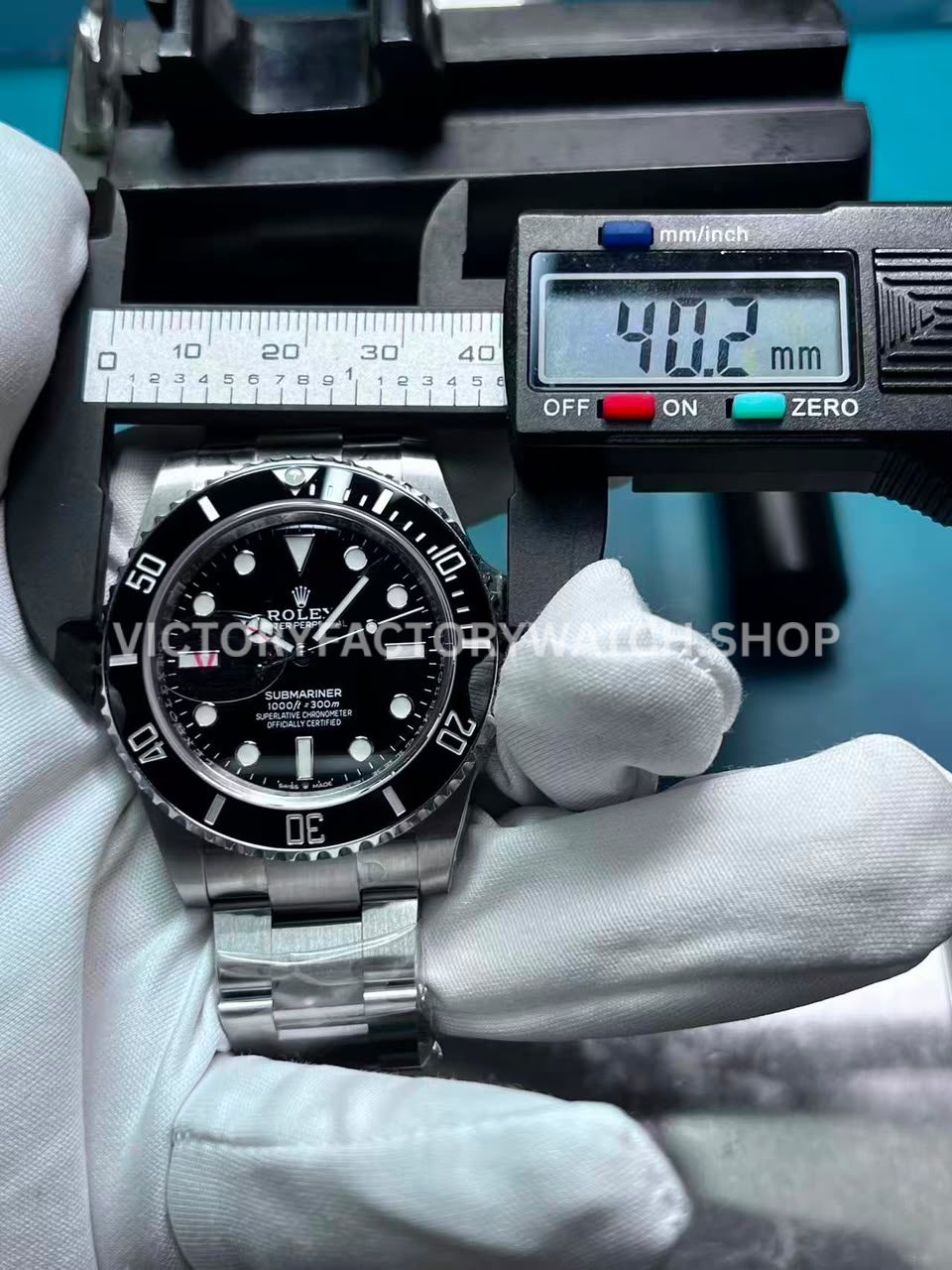

Why did this 41mm model measure 40.2mm?
The 124060 belongs to the nominal 41 mm generation, while our individual QC sample measured 40.2 mm at the specific measurement points used during inspection. Nominal sizing and physical caliper measurements are not always identical.

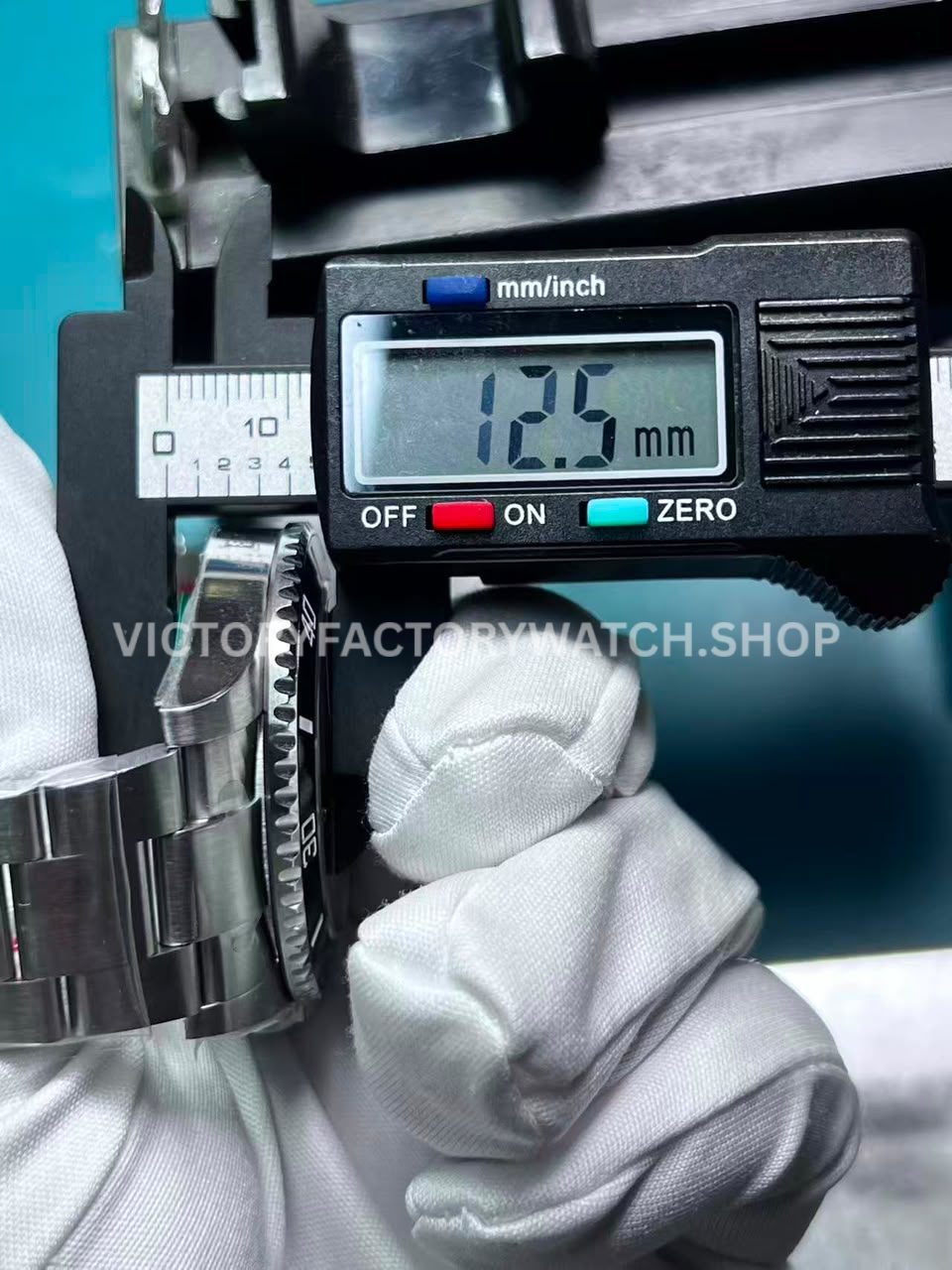

How thick is this VS Factory 124060?
This individual watch measured 12.5 mm in thickness.

How much does the watch weigh?
The individual watch inspected measured 158.7 g. Bracelet sizing and normal individual production tolerances can result in small differences.
